Μετρητής Ισχύος Οπτικής Ίνας GRANDWAY FHP2B04 Optical Power Meter

Παράδοση 4-10 ημέρες
008538
Τιμή σε πόντους:179 πόντοι
Κατασκευαστής: Grandway, Εγγύηση: 2 Έτη
17900

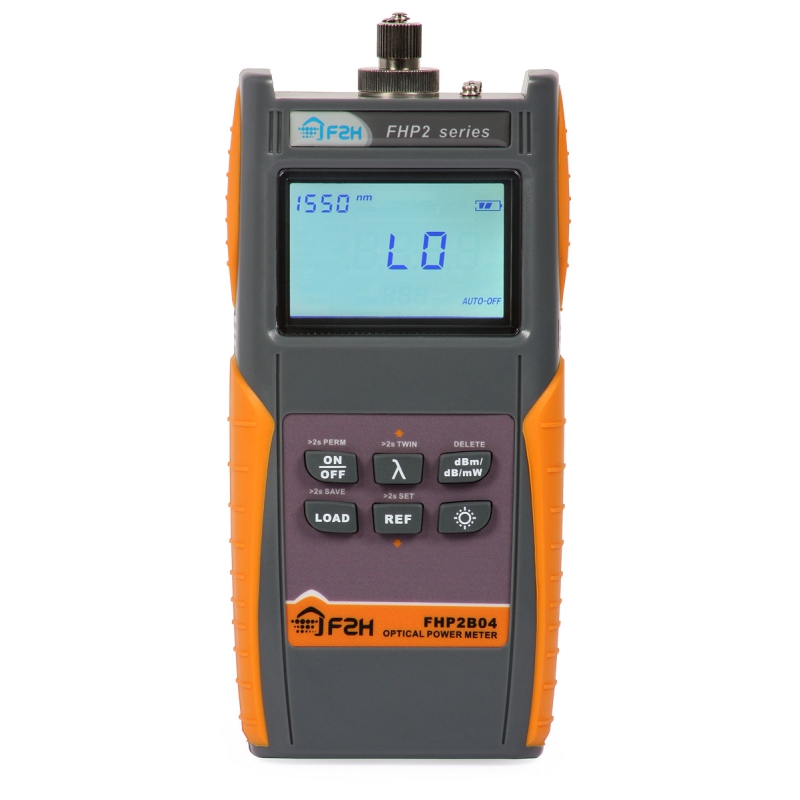

Μετρητής Ισχύος Οπτικής Ίνας GRANDWAY FHP2B04 (L5822) Optical Power Meter

Μετρητής Ισχύος Οπτικής Ίνας GRANDWAY FHP2B04 (L5822) Optical Power Meter

  • Συσκευή βαθμονομημένη για τα ακόλουθα μήκη κύματος [nm]: 850, 1300, 1310, 1490, 1550, 1625
  • Ανιχνευτής InGaAS
  • Μετρήσεις των απολύτων επιπέδων οπτικής ισχύος σε dBm/milliwatts ή των σχετικών επιπέδων σε σχέση με ένα επίπεδο αναφοράς σε dB
  • Εύρος μέτρησης: -50...+26 dBm (1550 nm), ανάλυση 0,01 dB, σφάλμα μέτρησης ±5% ±10nW

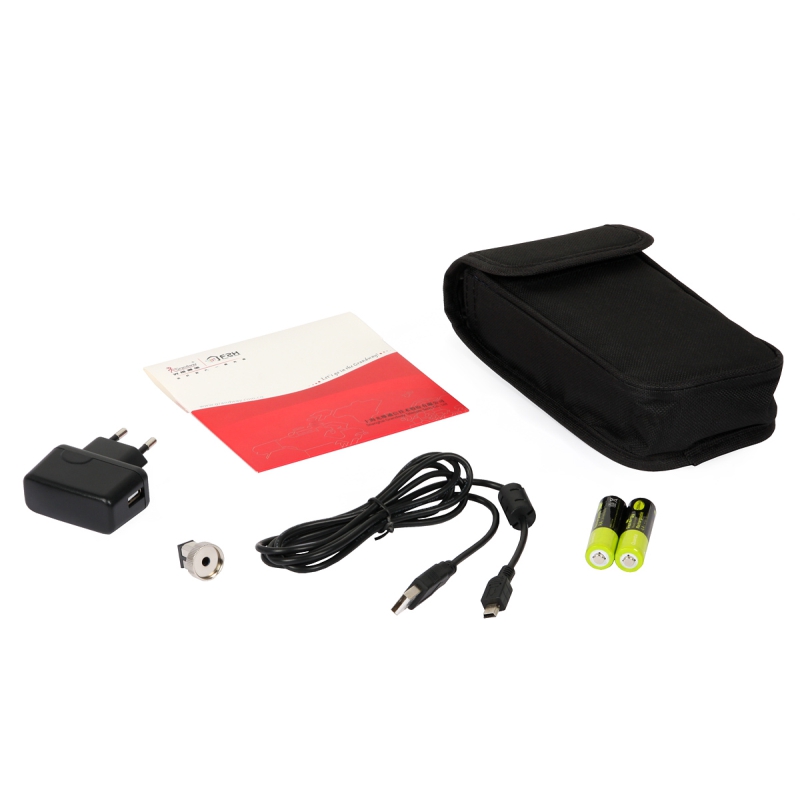

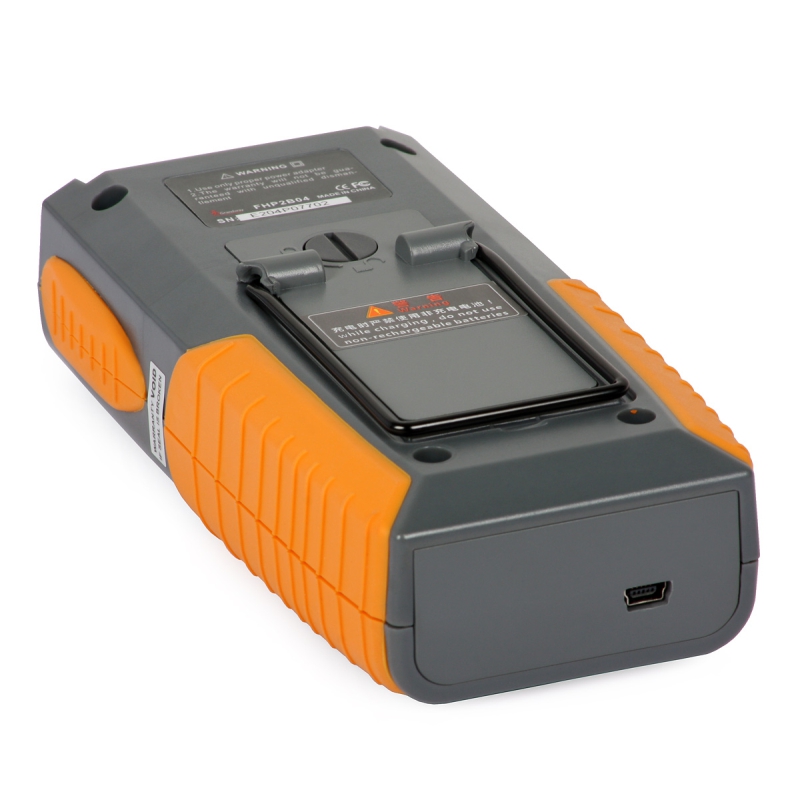

  • Τροφοδοτείται από δύο επαναφορτιζόμενες μπαταρίες AA, φορτισμένες από τον παρεχόμενο φορτιστή AC
  • Λειτουργία AUTO-OFF
  • Μνήμη 999 μετρήσεων, επικοινωνία με υπολογιστή μέσω διασύνδεσης USB
  • Ευανάγνωστη, μεγάλη οθόνη με οπίσθιο φωτισμό
Άτοκες δόσεις!

Για αγορές από το κατάστημά μας άνω των 300€, μπορείτε να πληρώσετε έως 3 άτοκες δόσεις.

Αποστολές
  • Εντός Αττικής - €3 / 2 κιλά (+ 1.50 για κάθε επιπλέον κιλό)
  • Εκτός Αττικής - €3.5 / 2 κιλά (+ 1.50 για κάθε επιπλέον κιλό)
  • Ευρώπη από 41€ και πάνω βάση κιλών
  • Αμερική - Καναδάς από 46€ και πάνω βάση κιλών
  • Κύπρος από 21€ και πάνω βάση κιλών



Τρόποι πληρωμών
  • Με πιστωτική / Χρεωστική Κάρτα
  • Αντικαταβολή + 3€
  • Paypal
  • Τραπεζική κατάθεση
  • Πληρωμή στο κατάστημα
Γιατί εμάς
  • Εγγύηση σε όλα μας τα προϊόντα
  • Ενημέρωση πορείας παραγγελίας
  • Επιστροφές - Ακυρώσεις
  • Πολλοί τρόποι πληρωμών
  • Οι καλύτερες τιμές!
  • Η Διαθεσιμότητα των προϊόντων αλλάζει συνεχώς. Διαβάστε εδώ!

Μετρητής Ισχύος Οπτικής Ίνας GRANDWAY FHP2B04 (L5822) Optical Power Meter

Optical power meter GRANDWAY FHP2B04 L5822 measures optical power loss in fiber networks based on multimode and single-mode fibers. The meter is calibrated to measure optical power at six wavelengths (nm): 850, 1300, 1310, 1490, 1550, and 1625. A wide measuring range (-50...+26 dBm) and high accuracy (not worse than +/-5% / 10 nW) allow for precise control of any optical network. Aside from the direct measurements of the optical power (in mW and dBm), it is also possible to set 0 dB reference level.
The single optical port of the meter precisely measures all wavelengths. The device has the function auto switch off, protecting the batteries against accidental discharging, and the battery level indicator.
A particularly noteworthy function of the meter is automatic recognition of the wavelength of the connected light source and measure of its power. The meter memory can save up to 999 measurements, which can then be easily exported to a PC via the built-in USB port. The application offered by the manufacturer allow for the generation of measurement reports that can be exported to a .csv file.

Χαρακτηριστικά

  • Model: Grandway FHP1B04
  • Code: L5822
  • Operating wavelengths: 850 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm
  • Detector: InGaAs
  • Measuring range: -50...+26 dBm (@1550nm)

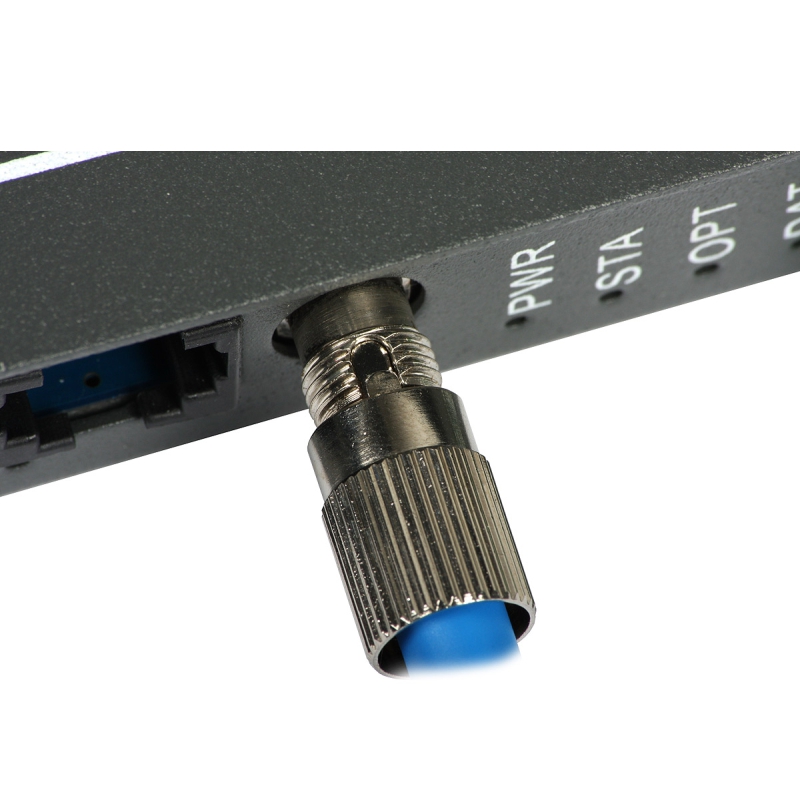

  • Connectors: FC/PC, SC/PC (changeable, with 2.5 mm ferrule)
  • Accuracy: ±5%, ±10nW
  • Operating temperature: -10°C...+50°C
  • Storage temperature: -20°C...+70°C
  • Dimensions: 160 x 76 x 45 mm mm
  • Weight: 270 g
  • Power: 2x AA 1.2 V rechargeable battery
Κατασκευαστής:
Grandway
Εγγύηση:
2 Έτη
