Οπτική Πηγή Laser GRANDWAY FHS2Q01F 850/1300/1310/1550 nm Optical Laser Source

Παράδοση 10+ ημέρες
008541
Τιμή σε πόντους:369 πόντοι
Κατασκευαστής: Grandway, Εγγύηση: 2 Έτη
36900

Οπτική Πηγή Laser GRANDWAY FHS2Q01F 850/1300/1310/1550 nm (L5826) Optical Laser Source

Οπτική Πηγή Laser GRANDWAY FHS2Q01F 850/1300/1310/1550 nm (L5826) Optical Laser Source

  • Παραγόμενο μήκος κύματος: 850 nm, 1300 nm, 1310 nm ή 1550 nm
  • Ισχύς εξόδου: -5,0 dBm
  • Λειτουργία AUTO-OFF
  • Ευανάγνωστη, οθόνη με οπίσθιο φωτισμό
  • Μικρό μέγεθος και χαμηλό βάρος
  • Απλή και διαισθητική λειτουργία
Άτοκες δόσεις!

Για αγορές από το κατάστημά μας άνω των 300€, μπορείτε να πληρώσετε έως 3 άτοκες δόσεις.

Αποστολές
  • Εντός Αττικής - €3 / 2 κιλά (+ 1.50 για κάθε επιπλέον κιλό)
  • Εκτός Αττικής - €3.5 / 2 κιλά (+ 1.50 για κάθε επιπλέον κιλό)
  • Ευρώπη από 41€ και πάνω βάση κιλών
  • Αμερική - Καναδάς από 46€ και πάνω βάση κιλών
  • Κύπρος από 21€ και πάνω βάση κιλών



Τρόποι πληρωμών
  • Με πιστωτική / Χρεωστική Κάρτα
  • Αντικαταβολή + 3€
  • Paypal
  • Τραπεζική κατάθεση
  • Πληρωμή στο κατάστημα
Γιατί εμάς
  • Εγγύηση σε όλα μας τα προϊόντα
  • Ενημέρωση πορείας παραγγελίας
  • Επιστροφές - Ακυρώσεις
  • Πολλοί τρόποι πληρωμών
  • Οι καλύτερες τιμές!
  • Η Διαθεσιμότητα των προϊόντων αλλάζει συνεχώς. Διαβάστε εδώ!

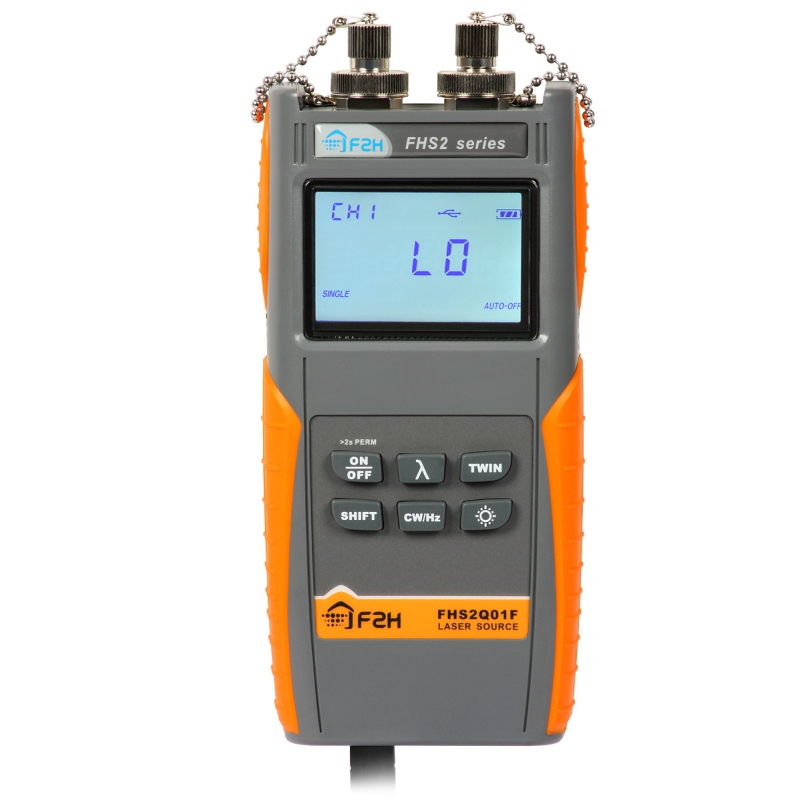

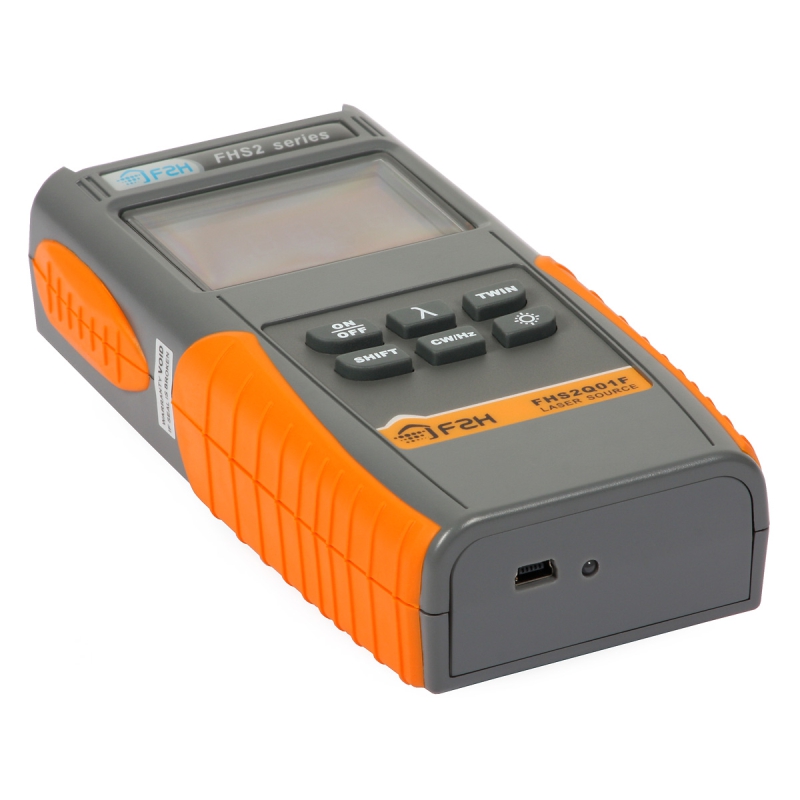

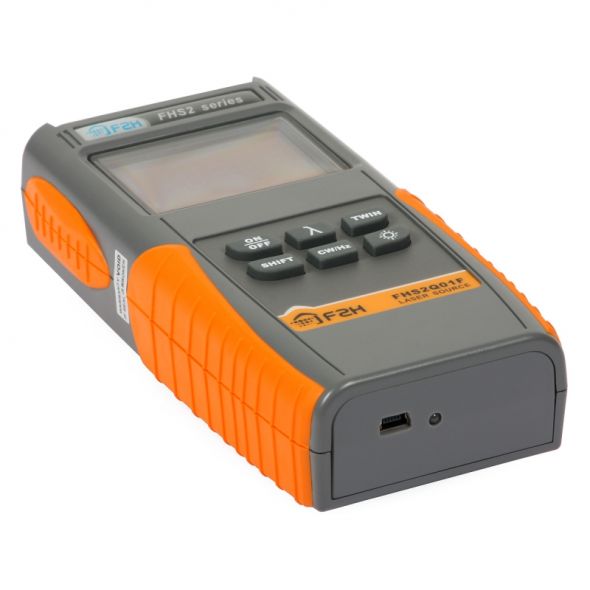

Οπτική Πηγή Laser GRANDWAY FHS2Q01F 850/1300/1310/1550 nm (L5826) Optical Laser Source

Περιγραφή:

Optical laser source GRANDWAY FHS2Q01F L5826 is the tool necessary for measuring optical power loss in fiber-optic networks (FTTx). The source generates laser beams of predetermined wavelengths and power for precise measurements.
The device generates laser bream of the wavelength 850 nm, 1300nm, 1310 nm or 1550 nm at the power level of -5 dBm. It means that the device can be used both in multimode and single-mode networks. The source can generate constant wave (CW) or modulated with 270 Hz, 1 kHz, or 2 kHz frequency. A short-term stability of the light source is better than 0.1 dB for a time shorter than 15 minutes, and a long-term stability (above 5 hours) is better than 0.2 dB. The device can operate in the temperature range of -10°C to +50°C.
Devices of FHP2 series can transmit information about the length of the currently transmitted wave, thanks to which the power meter from this series will automatically switch to its reception. This feature reduces the need for communication between technicians and the risk of error.

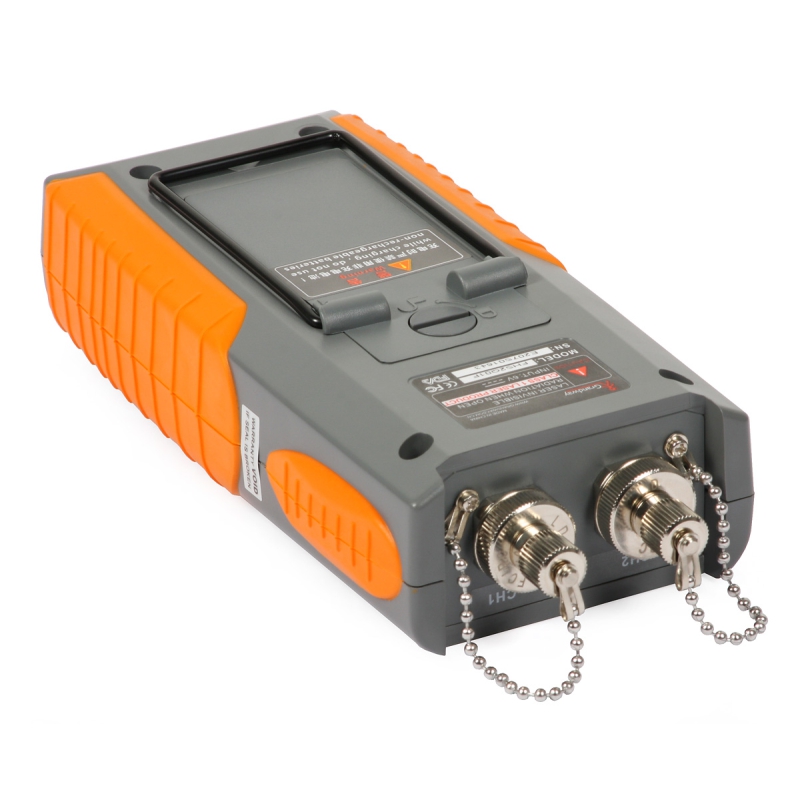

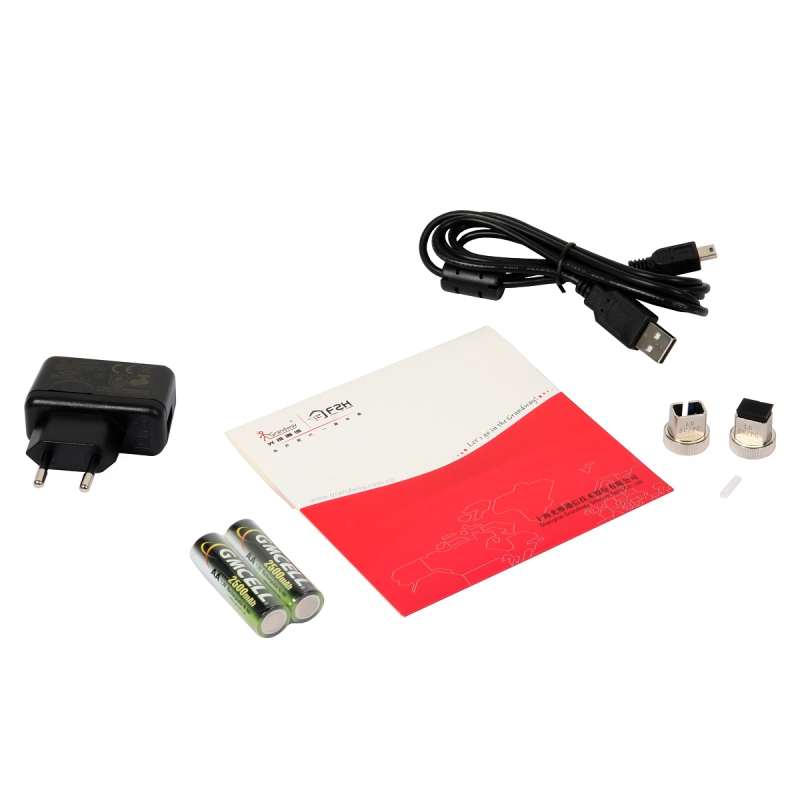

Due to small size and low weight, the device is ideal for field applications. The device is powered from two AA rechargeable batteries. Two optical ports are dedicated for FC/PC connectors with 2.5 mm ferrules. The set includes SC/PC adapters.

Χαρακτηριστικά:

  • Model: Grandway FHS2Q01F
  • Code: L5826
  • Parameter: Value
  • Generated wavelength: 850 nm, 1300 nm, 1310 nm or 1550 nm
  • Optical power: -5.0 dBm
  • Power stability: <0.1 dB (15 minutes) / <0.2 dB (5h or longer)
  • Connector: FC/PC
  • Modulation: 270 Hz / 1 kHz / 2 kHz
  • Wavelength tolerance: ±20 nm @ 1310/1550 nm
  • Operating temperature: -10°C ... +50°C
  • Storage temperature: -20°C ... +70°C
  • Dimensions: 160 x 76 x 45 mm
  • Weight: 270 g
  • Power: 2x Ni-MH AA rechargeable batteries. (2500mAh)

NOTICE! The invisible laser beam is dangerous for eyes! The user must operate the device with care!


Κατασκευαστής:
Grandway
Εγγύηση:
2 Έτη
